Condition : New
Place of Origin : Jiangsu, China (Mainland)
Brand Name : HB plastic bottle smashing machine
Model Number : PC-800
Use : Bottle Crusher
Plastic Type : PET
Shaft Design : Double
Power : 30-37kw
Capacity : 600-800kg/h
Voltage : Customized
Dimension(L*W*H) : 1950x1550x2130mm
Weight : 1900KG, 1900kg
Certification : CE certification
After-sales Service Provided : Engineers available to service machinery overseas
Moving knife : 24
Static kinfe : 4
Output : 600-800kg/h
Dimension : 1950x1550x2130mm
Motor power : 30-37kw
Sieve diameter : 6-12mm
Name : plastic bottle smashing machine
Rotation diameter : 450mm
The number of bearings : 2
Price : US $8,000-15,000 / Sets | 1 Set/Sets (Min. Order)
MOQ : 1 Set/Sets
PC800 series High-quality plastic crusher plastic bottle smashing machine
Model | PC-200 | PC-400 | PC-600 | PC-800 | PC-1000 |
Moving knife | 6 pcs | 12 pcs | 18 pcs | 24 pcs | 30 pcs |
Static knife | 2 pcs | 2 pcs | 4 pcs | 4 pcs | 4 pcs |
Blade specification | 100*85*22mm | 100*85*22mm | 100*100*22mm | 100*100*22mm | 100*100*25mm |
Motor power | 4 kw | 7.5 kw | 22-30 kw | 30-37 kw | 45-55 kw |
Screen plate thickness | 8 mm | 10 mm | 10 mm | 10 mm | 10 mm |
Sieve diameter | 10 mm | 6-12 mm | 6-12 mm | 6-12 mm | 6-12 mm |
Material of kinfe | qsicr | qsicr | qsicr | qsicr | qsicr |
Output | 100-150 kg/h | 200-300kg/h | 400-600kg/h | 600-800kg/h | 800-1000kg/h |
Rotation diameter | 220mm | 260mm | 400 mm | 450mm | 480mm |
Source voltage | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz | 380V 50Hz |
The number of bearings | 2 | 2 | 2 | 2 | 2 |
Dimensions | 750x600x1130mm | 1050*900*1430mm | 1550*1200*1730mm | 1950*1550*2130mm | 1750*1550*1730mm |
Weight | 300kg | 700kg | 1600kg | 1900kg | 2100kg |
PC series Crusher is used for crushing pipes,extrusion materials plates and PET bottles.
Characteristics
1.Good looking in surface, color coordination, spray-painted solid.
2. Hopper, crushing room, misreported is disserted, easy to dumpster gate.
3. The crushing room use noise arrester, to lower noise.
4. Pulley with guards, so it is safe and reliable.
5. Cleaning and insurance
6. The motor has a protective device and power chain protection system.
7. The using life of the alloy blade is much longer than the ordinary one, moreover, it is very suitable for smashing high-densely plastic.
PC series plastic crusher is suitable for smashing polystyrene, polypropylene, nylon, engineering plastic and injector. If you change the suitable sieve pore board and adjust the space among the blades, it can also be used in smashing the waste of various plastic, films, sheet metal and so on
![]() |

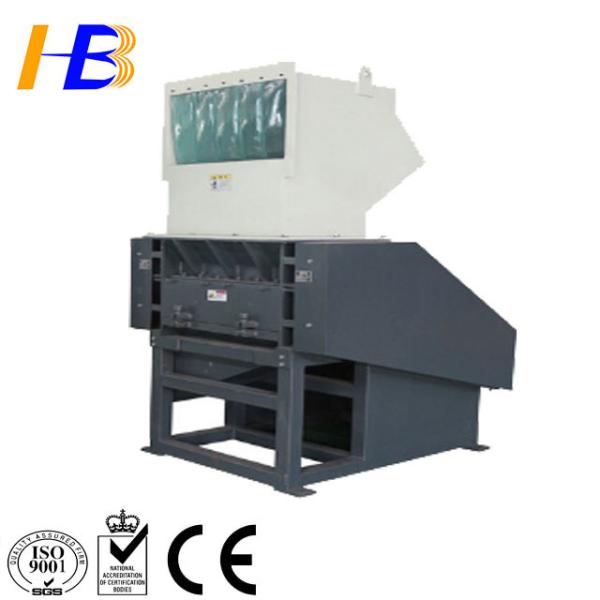

PC800 series High-quality plastic crusher plastic bottle smashing machine Images |
